Product Description

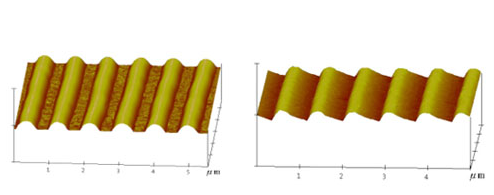

Holographic diffraction gratings have a sinusoidal groove shape, created by recording interference fringe fields in photoresist material. Since the grooves are symmetric, they do not have a preferred blaze direction. The range of useful diffraction efficiency is controlled by varying the modulation (the ratio of groove depth to groove spacing). Holographic gratings contain no periodic errors or “ghosts” as they are generated optically.

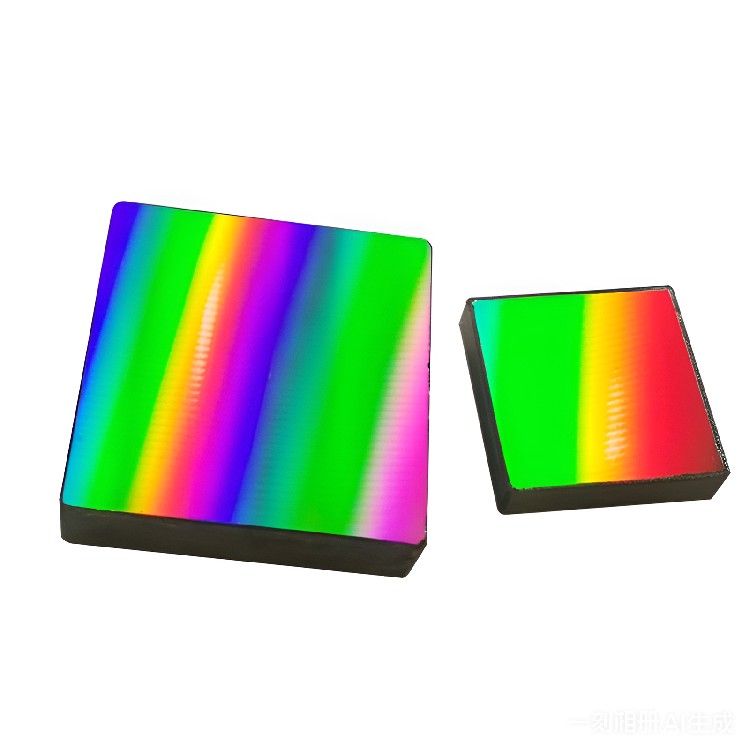

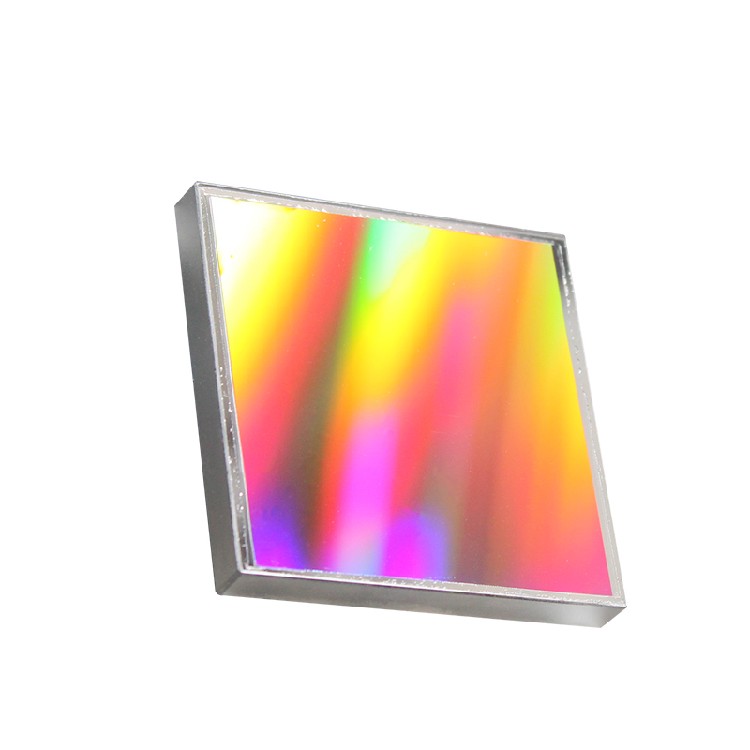

Plane Holographic Diffraction Grating has 3600 grooves per millimeter and a nominal blaze wavelength at 170 nm. It has a recommended spectral region of 170 to 500 nm. This 25 x 25mm grating is aluminum coated on a 6 mm thick glass substrate.

If you don't find anything above that fits your application, submit a quote request to get a quote based on your requirements.If you need information on products of more other specifications and models, please contact us.
