Specifications

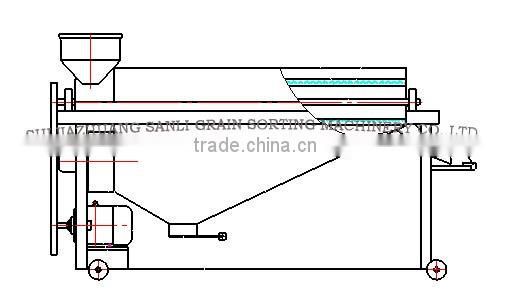

PG-5 Legume polishing machine

Power: 5kw

Size:3000*650*1800

Drum diameter and length:380*2400mm

PG-5 Legume polishing machine



Brief Instruction

The series of PG beans polishing machine is base on the spiral axis of rotation, so that the material can replace in the process of fluidization, and in the process it can be scrub by the fixed axis cotton cloth ,it is ideal for beans to achieve good effect of polishing. It can remove the dust and surface soil of beans, After processed by this machine, the products is visible light, smooth, and improve the quality of beans that lead to high price of beans.

The design of the machine is reasonable, and technique

index is excellent; it is efficient, easy to operate and move.

Technical specification



Model	PG-3	PG-5
Productivity	2000 kg/h	4000 kg/h
Size (L*W*H)	2400*900*1780 mm	3500*900*1780 mm
Roller (Diameter*L)	330*1800 mm	330*2400 mm
Weight	500 kg	650 kg
Power	380V  50Hz	380V  50Hz
Total Power	4.55 kw	6.05 kw
Polishing rate	≥97%	≥97%
Broken rate	≤2.5%	≤2.5%
Movable speed	≤10 km/h	≤10 km/h
