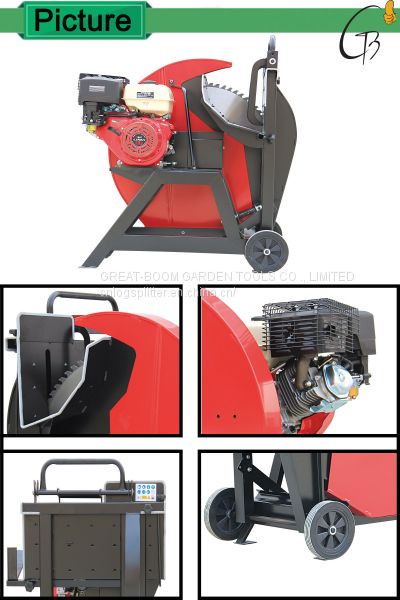

CL700-1 9HP

GASOLINE ENGINE LOG SAW

EASILY MOVE

USAGE AT ANYWHERE

DON’T BE LIMITED BY ELECTRICITY

TUNGSTEN CARBIDE TIP BLADE

Cutting diameter: 30-270mm

Max. Length of log to cut: 1.15meter

Wheel: 200mm size, made of rubber material

Blade: 700x30x3mm, 64Z

N.W.: 270.60pounds

G.W.: 292.60pounds

Products Size (L x W x H): 51.18*27.56*43.30in.

Packing size (L x W x H): 44.29*29.52*44.29in./1PLT

Container loading: 32pcs/20ft, 64pcs/40ft/40HQ



Engine: 177FA, 9.0hp, single-cylinder, air-cooled, 4 strokes,

OHV single cylinder, horizontal shaft, Engine certificate: CE, EPA, EC-II, CARB

Bore x stroke: 77mm x 58mm

Displacement: 270ml

Compression ratio: 8.2:1

Max. Power output: 6.6kw/4000rpm

Fuel tank capacity: 6.0L

Engine oil capacity: 1.1L

Fuel consumption: 374g/kw.h

Net weight: 55pounds

Start type: recoil
