The corrugated cardboard machine, often referred to as a corrugator, is the heart of the packaging industry. This advanced machinery transforms raw paper into the iconic corrugated cardboard—a material celebrated for its strength, versatility, and eco-friendliness. As global demand for sustainable packaging surges, driven by e-commerce and environmental awareness, corrugators have become indispensable. This article explores the technology, operation, and impact of these machines, highlighting their role in shaping modern packaging solutions.

How a Corrugated Cardboard Machine Operates

The production process involves a meticulously coordinated sequence of steps:

Paper Roll Feeding:

Large rolls of kraft paper (for liners) and recycled paper (for fluting) are mounted on unwinders.

The paper is fed into the machine at high speed, ensuring continuous production.

Flute Formation:

The medium paper passes through a corrugating unit, where it is moistened with steam and pressed between heated and gear-like rollers. These rollers imprint the paper with flutes (wave patterns), categorized by size (e.g., A-flute for cushioning, B-flute for printability, E-flute for lightweight boxes).

Adhesive Application:

A starch-based adhesive is applied to the peaks of the fluted medium.

Lamination:

The fluted medium is sandwiched between linerboards under high pressure and heat.

Single-face (one liner) or double-face (two liners) boards are produced, depending on requirements.

Drying and Curing:

The bonded board travels through a drying section, where steam-heated plates or rollers remove moisture, ensuring the adhesive sets firmly.

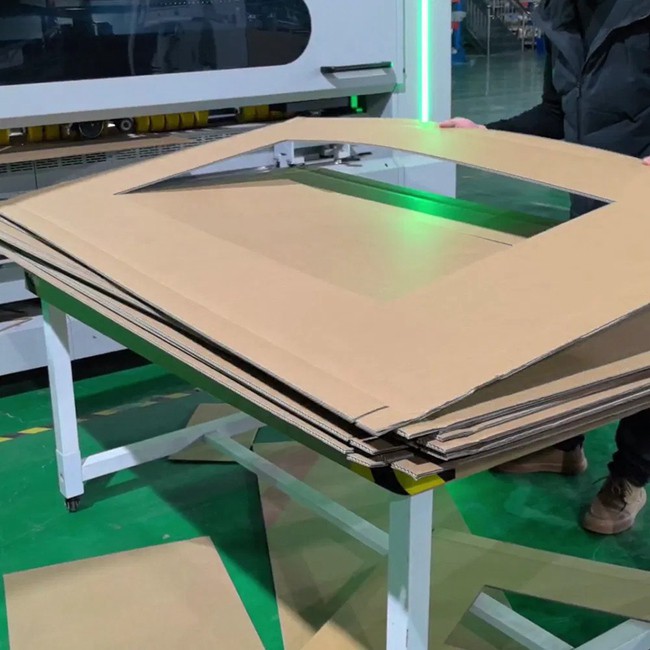

Cutting and Finishing:

Rotary die-cutters or slitters trim the board into sheets or blanks.

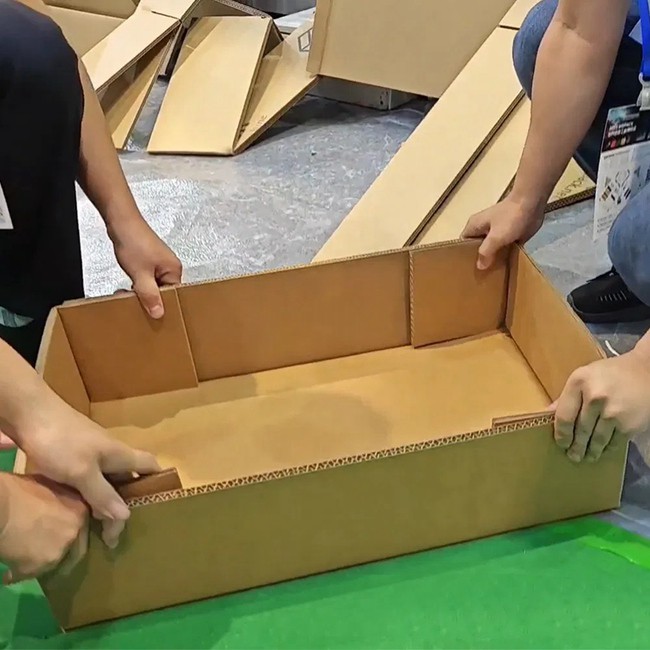

Creasing and scoring units add fold lines for box assembly.

Modern corrugators integrate automated control systems (PLC or IoT-enabled) to monitor speed, temperature, and alignment, ensuring consistent quality and minimizing waste.

Key Components of a Corrugator

Preheaters: Condition paper for optimal adhesion.

Corrugating Rolls: Precision-engineered rollers that shape flutes.

Glue Machine: Apply adhesive uniformly using precision nozzles.

Double Backer: Bond the second linerboard to complete the board.

Cut-Off and Stacking System: Cut sheets to size and stack them for transport.

Quality Control Sensors: Detect defects like uneven glue application or misaligned flutes.

Applications of Corrugated Cardboard

Corrugated cardboard’s adaptability makes it essential across industries:

E-commerce Packaging: Custom-sized boxes for shipping everything from electronics to groceries.

Retail Displays: Lightweight and printable boards for in-store promotions.

Food and Beverage: Ventilated or grease-resistant designs for perishables.

Industrial Packaging: Heavy-duty boards for machinery and fragile goods.

Sustainable Alternatives: Replace plastic with recyclable corrugated solutions.

Advantages of Modern Corrugated Cardboard Machines

High Efficiency: Produce up to 400 meters of board per minute.

Customization: Adjustable flute profiles, sheet dimensions, and printing options.
