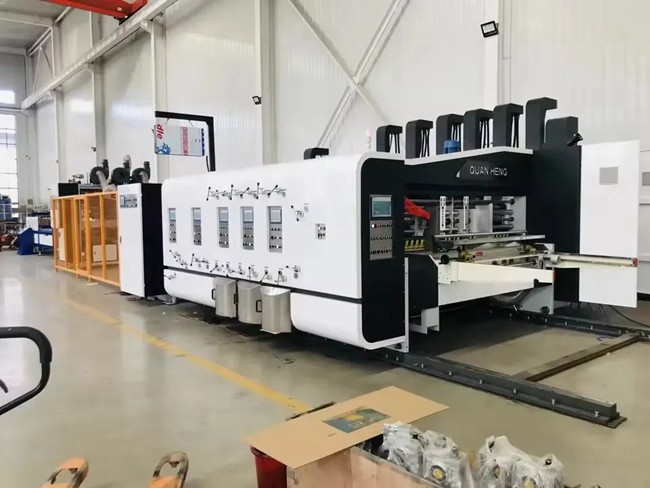

A corrugated carton box machine automates the conversion of corrugated cardboard sheets into finished boxes. These machines handle tasks such as cutting, creasing, folding, gluing, and printing, ensuring precision and scalability for industries ranging from small-scale artisans to high-volume manufacturers.

How Does the Machine Work?

The box-making process involves several integrated stages:

Feeding Corrugated Sheets:

Pre-cut corrugated sheets (single or double-wall) are loaded into the machine.

Printing (Optional):

Flexographic or digital printers apply logos, text, or graphics directly onto the sheets.

Die-Cutting and Creasing:

A die-cutting unit uses a custom steel rule die to cut the sheet into the desired box shape.

Simultaneously, creasing blades create fold lines for easy assembly.

Slotting and Perforating:

Rotary blades create slots for flaps or ventilation holes.

Perforations may be added for tear-off sections or handles.

Folding and Gluing:

The machine folds the sheet along crease lines and applies adhesive (hot melt or cold glue) to secure flaps.

Some machines produce flat-packed boxes for storage efficiency, while others assemble them in-line.

Stacking and Output:

Finished boxes are counted, stacked, and conveyed for packing or palletizing.

Modern machines utilize computerized controls to adjust dimensions, printing designs, and glue application in real time, ensuring rapid customization for diverse client needs.

Key Components of a Corrugated Carton Box Machine

Feeder Unit: Automatically feed sheets into the system.

Printing Module: Integrates flexo or digital printers for branding.

Die-Cutting Station: Precision-cut dies for complex box designs.

Folding and Gluing Section: Robotic arms or mechanical folders with adhesive dispensers.

PLC Control Panel: Centralized interface for programming box dimensions, speed, and glue quantity.

Quality Inspection Sensors: Detect misalignments, glue gaps, or print errors.

Applications of Corrugated Carton Boxes

E-commerce: Durable shipping boxes tailored to product dimensions.

Food Packaging: Ventilated boxes for fresh produce or grease-resistant liners.

Retail: Luxury boxes with high-quality prints for branding.

Electronics: Custom inserts and protective layers for fragile items.

Sustainable Packaging: Recyclable and biodegradable box solutions.

Advantages of Modern Carton Box Machines

Speed and Efficiency: Produce thousands of boxes per hour with minimal human intervention.

Precision: Consistent quality in cutting, folding, and gluing.

Flexibility: Quick changeovers for different box sizes and designs.

Sustainability:

Reduce material waste through precise die-cutting.

Support eco-friendly adhesives and recyclable materials.

Cost-Effectiveness: Lower labor costs and optimize raw material usage.
